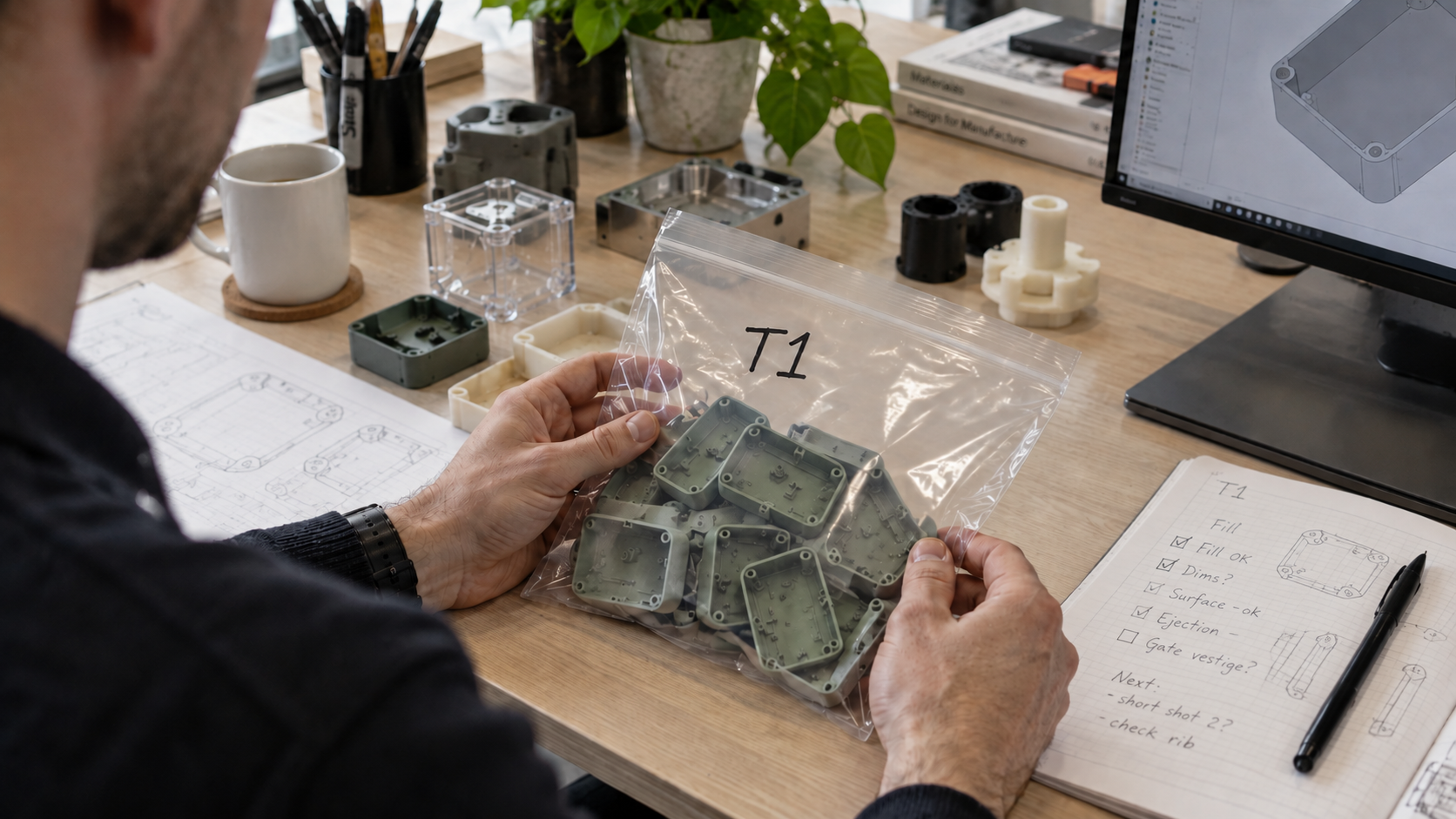

T1 (first tool trial) is not a day for collecting first-off samples to take home.
It is the first time the steel, the polymer and the press are asked the same question: will this tool make the drawing, on a repeatable process, in the material you will actually buy? (A prototype is not that proof — see why prototypes do not match moulded parts.) If you treat that day as a ceremony, you have already spent the delay. Coffee, a box of first-offs and a photograph for the group chat are not the job.
What T1 is for
In injection moulding, T1 is the first try-out after the tool is built. It is short for first trial, not a quick tick-box visit.
It should prove four things, in this order.

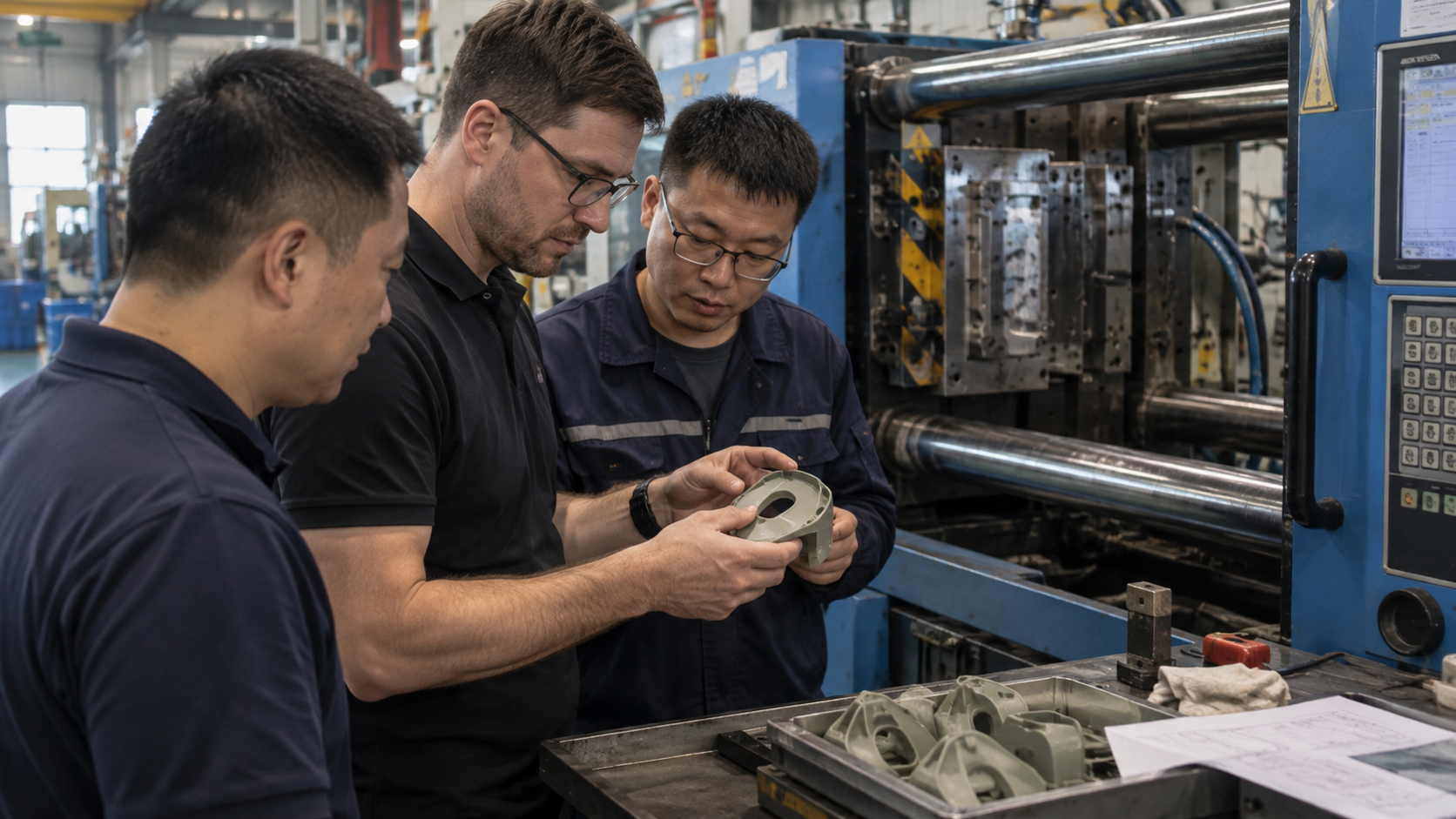

The tool opens, closes, ejects and runs without fighting itself. Slides, lifters, unscrewing gear, cooling circuits and the ejection set have to work as a machine, not only as a computer model.
The cavity fills and packs in the production polymer. Not a “close enough” grade from the stores. Shrinkage, fill and surface all move when the material changes. A pretty first-off in the wrong polymer is not evidence.
The moulded part can be measured against the ballooned drawing. Critical dimensions, datums and the features that affect assembly or sealing, not a handful of overall sizes that were easy to put a calliper on.
There is a process window, not a single lucky shot. If the only good parts came from one operator holding one set of conditions for twenty minutes, you do not have a process. You have a demonstration.
If any of those four fail, the trial has done its job. It has told you to stop. What ruins programmes is calling that failure a success because the parts look “near enough”.
What it is not
It is not proof of volume. Twenty good shots do not prove a ten-thousand-a-month run.
It is not a cosmetic sign-off if the steel is still metal-safe, meaning steel has been left on so the toolmaker can still take metal off after you see the first parts. That is sensible. It is also why a first-off shine is not the finished surface.

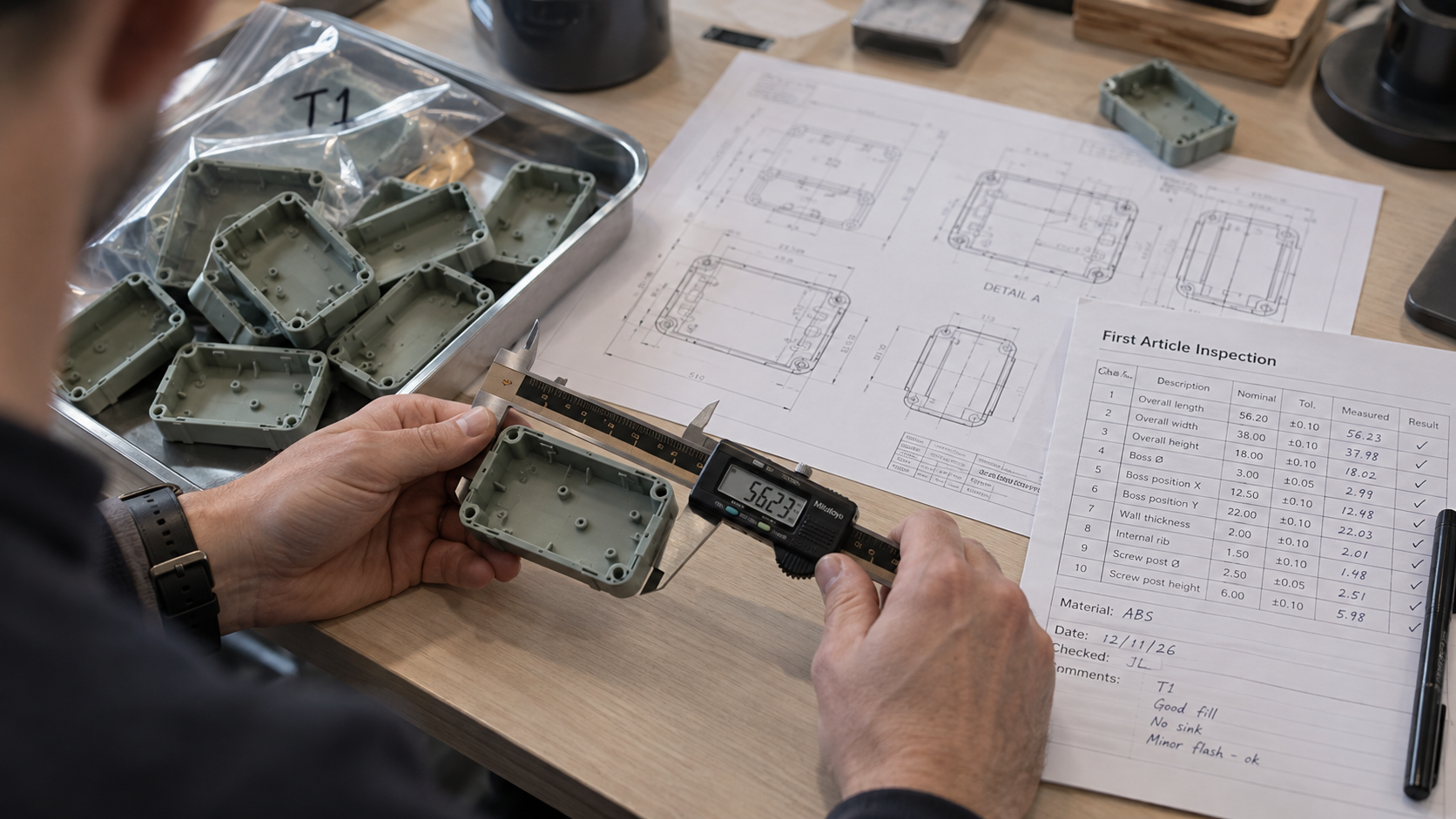

It is not a substitute for a dim report (dimensional inspection report). A tray of parts and a verbal “they look good” is not inspection. You need the drawing balloons, the method of measure, and numbers written down so a second person can repeat them.
It is not the moment to discover that nobody agreed what “good” means. That argument belongs in the design review, before the tool is cut.
A tray of parts and a verbal “they look good” is not a dim report.
The usual ways a first trial lies to you
The polymer in the hopper is not the grade on the PO (purchase order). The tool was compensated for one shrinkage. The press is running another. The part will move when you “switch to production material later”.
The parts are measured dry, then the product lives in a warehouse or in service where nylon, for example, takes up moisture and grows. The dry tick on the report is not the size the customer will assemble.
Only the easy faces are measured. The shut-off that controls flash, the bore that takes a seal, the clip that has to survive a service load. Those wait until goods-in finds them.
The process is held together by the setter who has done this tool a hundred times in his head. When he is on another press, the window disappears.
A concession is taken on the first tray “just to keep the date”. The next tray is made the same way. The exception has become the process.
What to walk in with
A ballooned drawing and an agreed inspection method. If you cannot point to the feature and the gauge, you are not ready to try the tool out.
The production polymer grade, colour package and any filler written down. If that material is not in the hopper, say so on the report. Do not pretend the trial stands for a grade you did not run.
A short list of what must pass before anyone talks about T2 (second tool trial) or a production slot: fill and pack, ejection, the critical dimensions, the cosmetic faces that the steel condition can honestly show, and a process that a second setter can repeat.
A decision rule. Who can say no. Who can accept a concession. How long you will wait for a steel change before the launch date is moved in public, not only in a private spreadsheet.
If the only good parts came from one lucky shot, you have a demonstration, not a process.
After the first tray
Write down what failed. Gate position, cooling, sticking on ejection, warp, flash, short fill, a dimension that will not come in. That list is the brief for the tool correction. It is also the brief for the next designer, so the lesson does not leave with one person.
If the parts are almost right, say “almost”. Book the steel work. Do not book the launch.
A second trial exists because the first one told the truth. It is not a failure of nerve. It is the cost of taking metal off in the right place instead of shipping hope.
The date is downstream of the trial
Product teams feel the shortage of experienced tool designers at this exact moment: design locked, press booked, first-offs on the bench, and nobody in the room who will argue with a green fill plot or a flattering photograph.
Treat T1 as careful judgement on steel, polymer and process. That is what it is for. The first-off box can wait.
